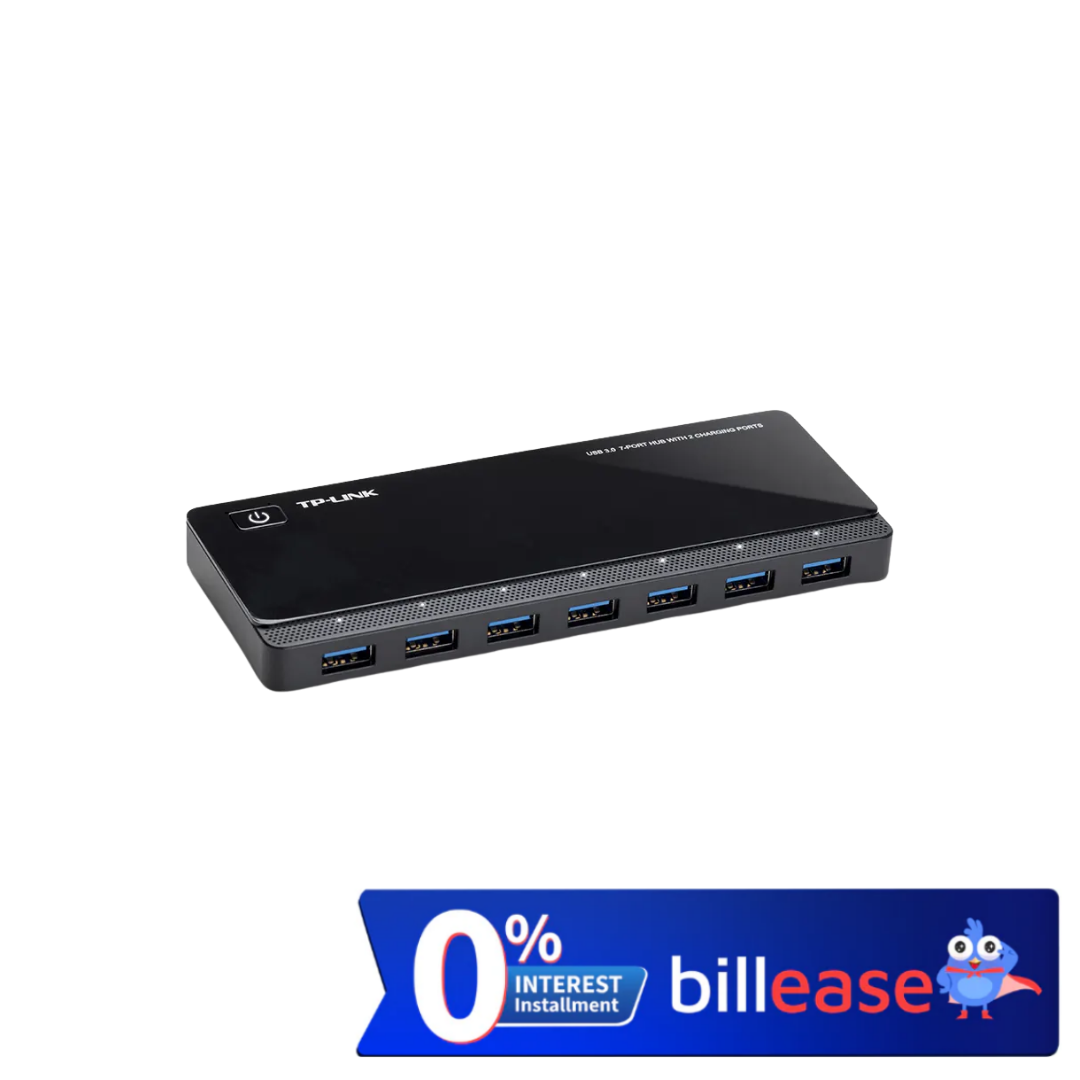

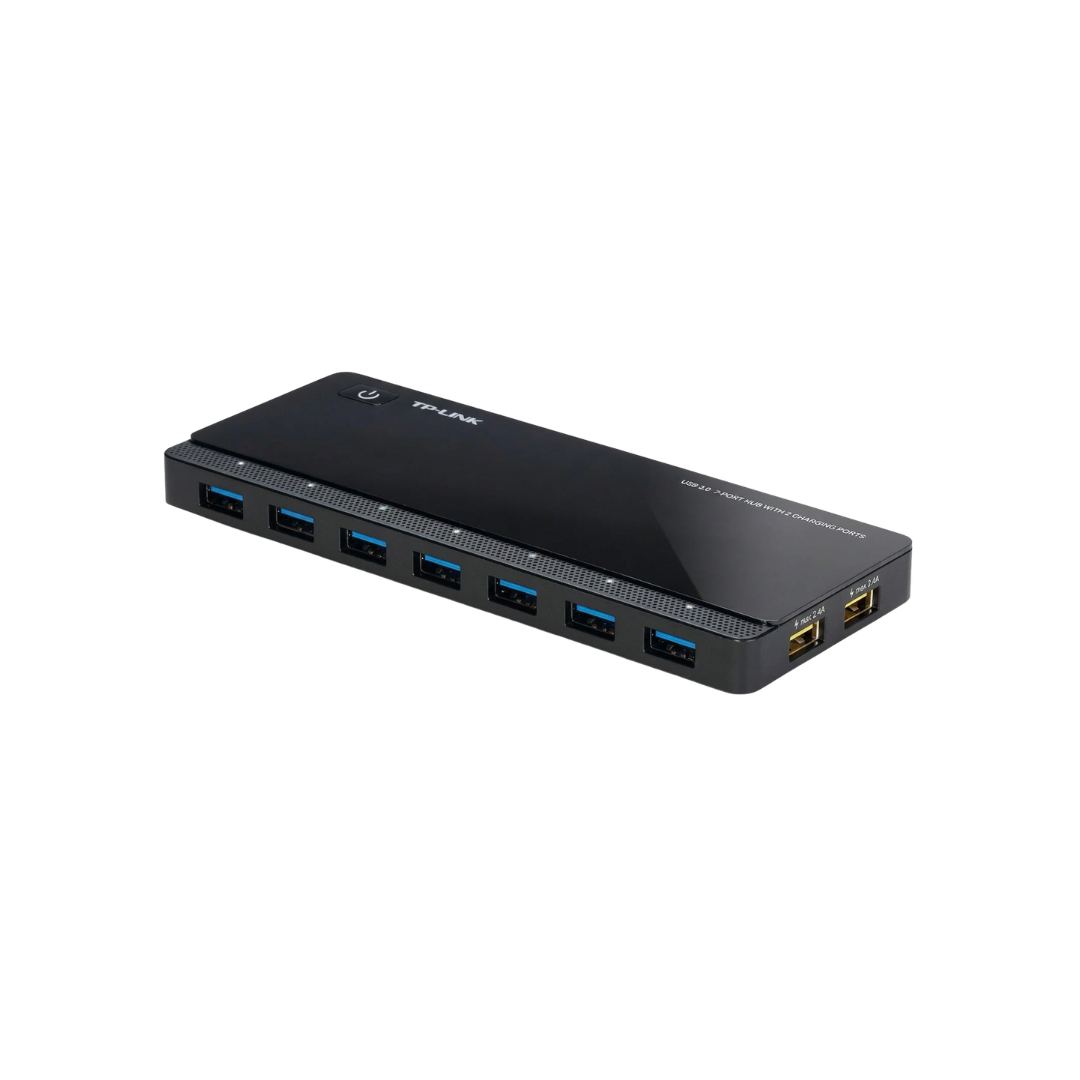

TP-Link UH720 USB 3.0 7-Port Hub

TP-Link UH720 USB 3.0 7-Port Hub

₱2,450.00 PHP
₱2,450.00 PHP
Sale Sold out
Taxes included.

ORDER PROCESSING : 1-2 DAYS AFTER RECEIVING PAYMENT

Or 12 months for only ₱1,000 with . Learn More.

The TP-Link UH720 is a premium, powered desktop USB hub designed to combine high-speed data transmission with high-output device charging.


🔌 Physical Layout & Interfaces
  • Data Ports: 7 × USB 3.0 Standard-A ports
  • Charging Ports: 2 × Dedicated Smart Charging ports (USB-A format)
  • Upstream Port: 1 × USB 3.0 Micro-B (Connects the hub to the host computer)
  • Power Input: 12V DC input port located on the side panel
  • Buttons: Built-in physical Power Button (turns the entire hub on/off)
  • Visual Indicators: 1 × dim white LED indicator on the power button; 7 × individual dim white status LEDs placed above each data port to confirm an active connection.

⚡ Data & Power Performance
  • Data Transfer Protocol: USB 3.2 Gen 1 (formerly USB 3.0)
  • Maximum Throughput: Up to 5 Gbps full-duplex bandwidth shared across the data ports
  • Charging Outputs: Each of the 2 dedicated charging ports delivers up to 5V / 2.4A (12W max per port)
  • Smart Charging Tech: Features proprietary TP-Link Smart Charging circuitry that automatically communicates with connected mobile devices (smartphones, tablets, or wearables) to deliver their maximum supported current.
  • Power Supply Brick: External AC adapter included, delivering either 12V / 4A (48W) or 12V / 3.3A (39.6W) depending on the regional product package version.

🛠️ Hardware & Circuit Protections
  • Core Controller Chipset: Powered by the Realtek RTS5411 hub controller chipset.
  • Hot Swapping: Fully supports live hot-swapping (connect or disconnect devices at any time without resetting the computer).
  • Circuit Protections:
    • Over-current protection
    • Over-voltage protection
    • Over-heating / thermal throttling
    • Short-circuit protection
    • Built-in surge protection for active data streams.

📐 Form Factor & Dimensions
  • Dimensions (W × D × H): 165 × 65.5 × 17.5 mm (6.5 × 2.6 × 0.7 inches)
  • Chassis Material: Rigid, matte black housing.
  • Included Cables: Comports with a 1-Meter (3.3 ft) USB 3.0 Micro-B to Type-A data link cable.

💻 Compatibility
  • Operating Systems: Plug-and-play architecture requiring no manual driver installation. Fully compatible with:
    • Windows (XP, Vista, 7, 8, 8.1, 10, 11)
    • macOS / OS X
    • Linux OS
