TP-Link UH5020C USB Type C 5-in-1 Hub

TP-Link UH5020C USB Type C 5-in-1 Hub

₱1,290.00 PHP
₱1,290.00 PHP
Sale Sold out
Taxes included.

ORDER PROCESSING : 1-2 DAYS AFTER RECEIVING PAYMENT

Or 12 months for only ₱1,000 with . Learn More.

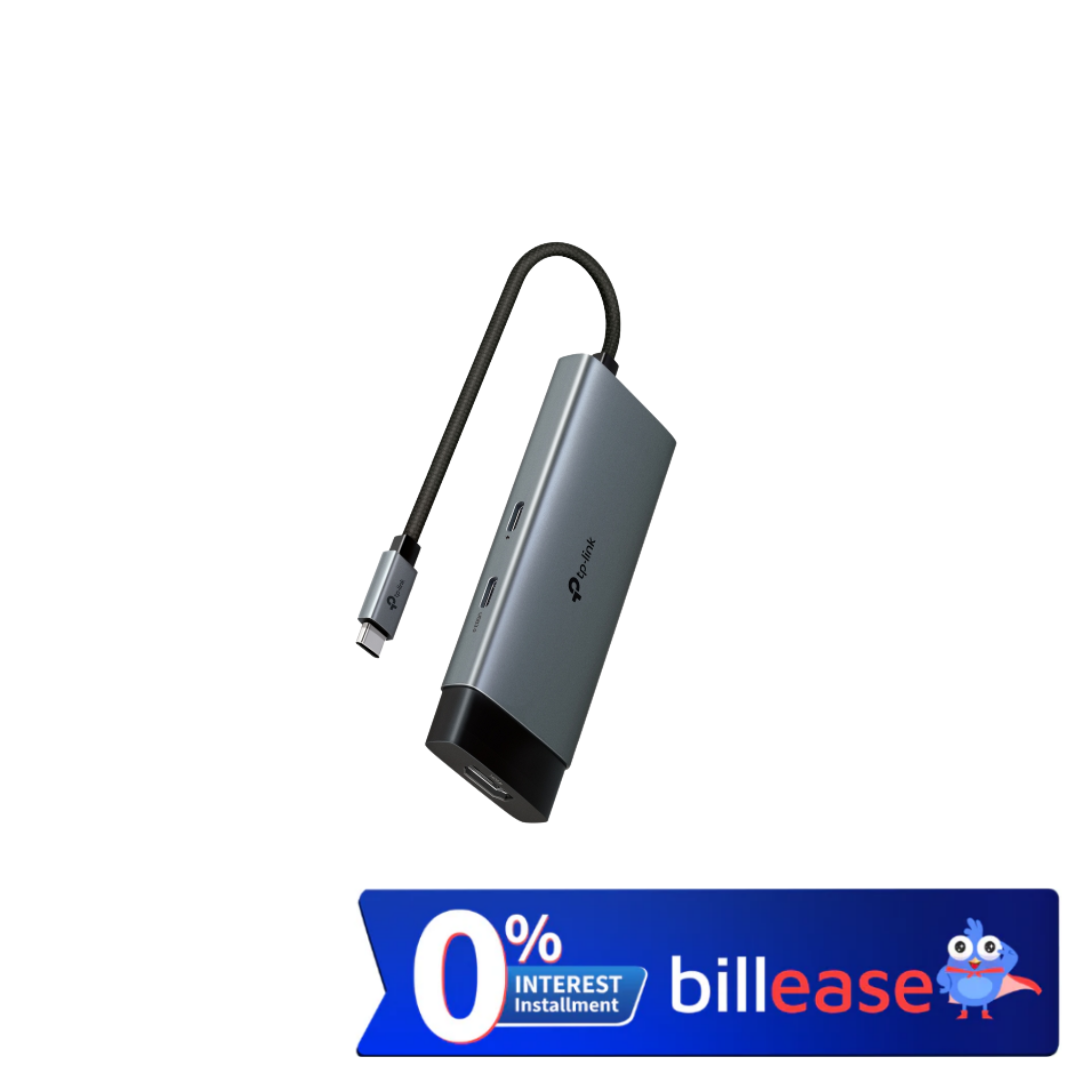

The TP-Link UH5020C is an aluminum-clad, 5-in-1 USB Type-C hub designed to expand a single USB-C port into video, charging, and data expansions.


Hardware Layout & Interfaces

  • Host Interface: Integrated 18 cm (180mm) braided USB Type-C cable.
  • Total Downstream Ports: 5 ports.
  • Video Output: 1 × HDMI port supporting up to 4K resolution at 60Hz.
  • Power Delivery In: 1 × USB-C Power Delivery (PD 3.0) pass-through port supporting up to 100W fast charging.
  • USB Data Ports:
    • 2 × USB-A 3.0 Data Ports (SuperSpeed 5 Gbps).
    • 1 × USB-C 3.0 Data Port (SuperSpeed 5 Gbps).

Data & Power Performance

  • Data Transmission Speed: Maximum 5 Gbps sharing bandwidth across the USB 3.0 interfaces.
  • Power Delivery Input: Accepts USB-PD up to 100W. Note that a small fraction of power is reserved for the hub's internal chip operations, supplying the remaining power to the host machine.
  • Video Standard: Supports High-Definition Media Display at 4K @ 60Hz (requires the host device's USB-C port to support DisplayPort Alt Mode).

Physical & Environmental Design

  • Enclosure Material: Scratch-resistant Aluminum Alloy case for heat dissipation and durability.
  • Cable Construction: Premium braided shielding.
  • Installation Architecture: True Plug & Play system; zero drivers or installation utilities required.
  • Operating Humidity Bounds: 10% ~ 90% relative humidity, non-condensing.
  • Storage Humidity Bounds: 5% ~ 90% relative humidity, non-condensing.

System Compatibility Matrix

The hub features cross-platform driverless functionality supporting the following operating systems:
  • Desktop/Laptop OS: Windows 11 / 10 / 8.1 / 8 / 7, macOS, Linux OS, and ChromeOS.
  • Mobile/Tablet OS: iPadOS, iOS, and Android.

TP-Link USB-C Hub Series Comparison

If your connectivity needs expand beyond 5 basic ports, TP-Link builds the exact same baseline architecture into larger variants:
Model Port Count Video Resolution Power Delivery Unique Port Additions
UH5020C 5-in-1 4K @ 60Hz 100W PD 3.0 2x USB-A, 1x USB-C Data
UH6120C 6-in-1 4K @ 60Hz 100W PD 3.0 Adds 1 Gigabit Ethernet (RJ45)
UH7020C 7-in-1 4K @ 60Hz 100W PD 3.0 Adds SD & microSD card slots
UH9120C 9-in-1 4K @ 60Hz 100W PD 3.0 Adds RJ45 Ethernet + SD/microSD slots
