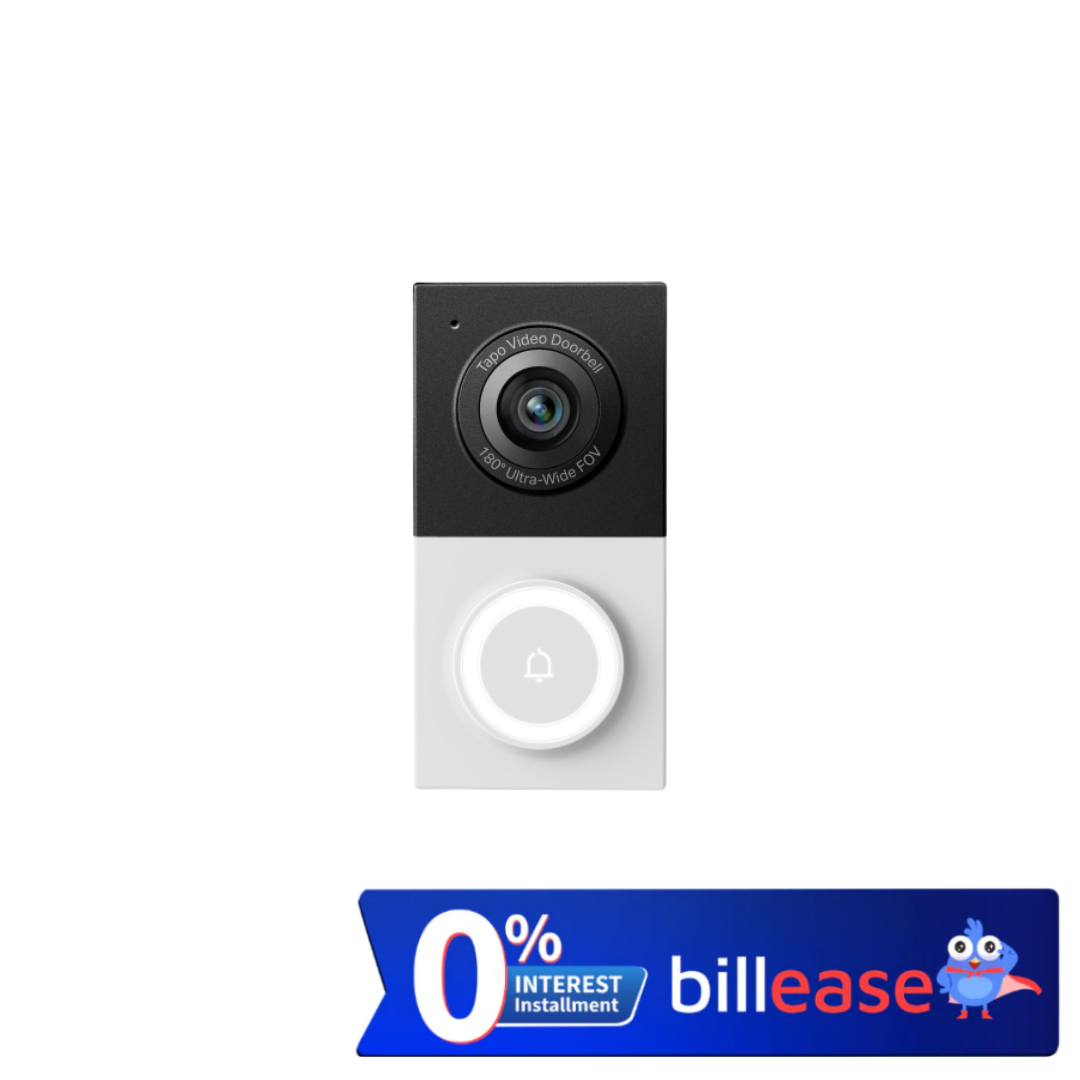

TP-Link Tapo D130 Smart Video Doorbell Wired

TP-Link Tapo D130 Smart Video Doorbell Wired

₱3,890.00 PHP
₱3,890.00 PHP
Sale Sold out
Taxes included.

ORDER PROCESSING : 1-2 DAYS AFTER RECEIVING PAYMENT

Or 12 months for only ₱1,000 with . Learn More.


The TP-Link Tapo D130 Smart Video Doorbell Wired  is a high-resolution, hardwired smart doorbell designed for detailed front-door security. It is well-known for offering premium features like local 2K 5MP recording, local AI processing, and third-party protocol support without requiring a subscription.


Camera & Lens Specifications

  • Image Sensor: 1/2.7" Progressive Scan CMOS Sensor
  • Resolution: 2K 5MP (2560 × 1920 pixels)
  • Focal Length: 1.18 mm
  • Aperture: F1.8
  • Field of View (FOV): 180° Diagonal
  • Aspect Ratio: 4:3 Head-to-Toe view (provides more vertical coverage than standard 16:9 doorbells)
  • Digital Zoom: 16x

Night Vision & Lighting

  • Infrared Night Vision: 850 nm IR LED with an effective range of up to 25 feet (7.6 meters)
  • Day/Night Switch: IR-Cut Filter with auto-switching functionality
  • Color Night Vision: Full-color night capability supported by an embedded Starlight sensor and built-in spotlights

Video & Audio Capabilities

  • Frame Rate: Up to 30 fps (Default is 15 fps; dynamically adjustable via app)
  • Video Compression: H.264
  • Image Enhancement: 3DNR (3D Digital Noise Reduction) and WDR (Wide Dynamic Range)
  • Audio Input/Output: Built-in omnidirectional microphone and high-output speaker
  • Audio Features: Two-way audio communication equipped with active noise cancellation
  • Quick Responses: Supports pre-recorded quick voice messages for visitors
Hardware Interfaces & Physical Buttons

  • Doorbell Unit:
    • 1× Main Ring/Doorbell Button
    • 1× Reset Button
    • 1× MicroSD Card Slot (Supports up to 512 GB)
  • Chime Unit:
    • 1× Reset/Sync Button
    • 1× Volume Control Button
    • 1× Music/Ringtone Toggle Button
Storage Options

  • Local Storage: On-device microSD slot supporting cards from 8 GB up to 512 GB (Class 10 or higher recommended, card sold separately). Allows for 24/7 continuous local recording.
  • Cloud Storage: Optional Tapo Care Cloud Storage Services (subscription required) providing 30-day video clip history and rich notifications with snapshots.
Smart Intelligence & Notifications

  • AI Edge Detection: On-device machine learning algorithms capable of detecting:
    • Motion
    • People
    • Pets
    • Vehicles
    • Package Deliveries/Removals
  • Advanced Monitoring: Supports customizable Activity Zones, Line-Crossing Detection, and Tamper Detection alerts.
Network, Connectivity & Protocols

  • Wireless Standards: IEEE 802.11b/g/n, 2.4 GHz Wi-Fi only
  • Transmission Rates: 11b: Up to 11 Mbps, 11g: Up to 54 Mbps, 11n: Up to 65 Mbps
  • Network Protocols: TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
  • Local Stream Integration: Supports RTSP and ONVIF protocols, allowing the video feed to be natively streamed to third-party Network Video Recorders (NVRs), NAS systems, or software like Synology Surveillance Station and Home Assistant.
  • Smart Home Integration: Natively works with Amazon Alexa and Google Assistant.
  • Ethernet Port: No (Wireless connection to local network only).
Power & Energy Consumption

  • Power Requirement: Hardwired only (No internal rechargeable battery operational mode).
  • Input Voltage: 8–24V AC, 50/60 Hz
  • Transformer Requirement: Requires a minimum of a 10VA transformer.
  • Power Consumption:
    • Doorbell Unit: 3.5 W (Typical) / 5.0 W (Maximum)
    • Chime Unit: 0.6 W (Typical) / 4.0 W (Maximum)
Environmental & Durability specs

  • Weatherproof Rating: IP65 Certified (Dust-tight and resistant to water jets from any angle).
  • Operating Temperature: -20°C to 45°C (-4°F to 113°F)
  • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
  • Operating/Storage Humidity: 10% to 90% RH (Operating) / 5% to 90% RH (Storage), non-condensing.
  • Certifications: CE, RoHS, KC, FCC, IC, ETL, UKCA
Dimensions & Package Contents

  • Doorbell Dimensions: 85 × 42.5 × 32.5 mm (3.35 × 1.67 × 1.28 inches)
  • Chime Dimensions: 73 × 46.9 × 43.5 mm (2.87 × 1.85 × 1.71 inches) (Note: UK plug version measures 73 × 54.6 × 48 mm)
  • Included Mounting Wedges: Comes packed with a 15° horizontal positioning wedge and a 5° vertical positioning wedge to optimize package visibility on the floor.
  • Box Contents: Tapo D130 Doorbell, Tapo Indoor Chime, Mounting Bracket, Horizontal & Vertical Wedges, Mounting Template, 3M Adhesive, Foam Pad, Extension Wires, Existing Chime Jumpers, Wire Nuts, Screws/Anchors, Detaching Pin, and Quick Start Guide.
Essential Product Tips

  • Check current voltage: Verify your existing doorbell transformer outputs between 8-24V AC and delivers at least 10VA before mounting.
  • Local NVR security: Ensure you configure a secure camera account in the Tapo App to enable RTSP/ONVIF streams on third-party hardware.
