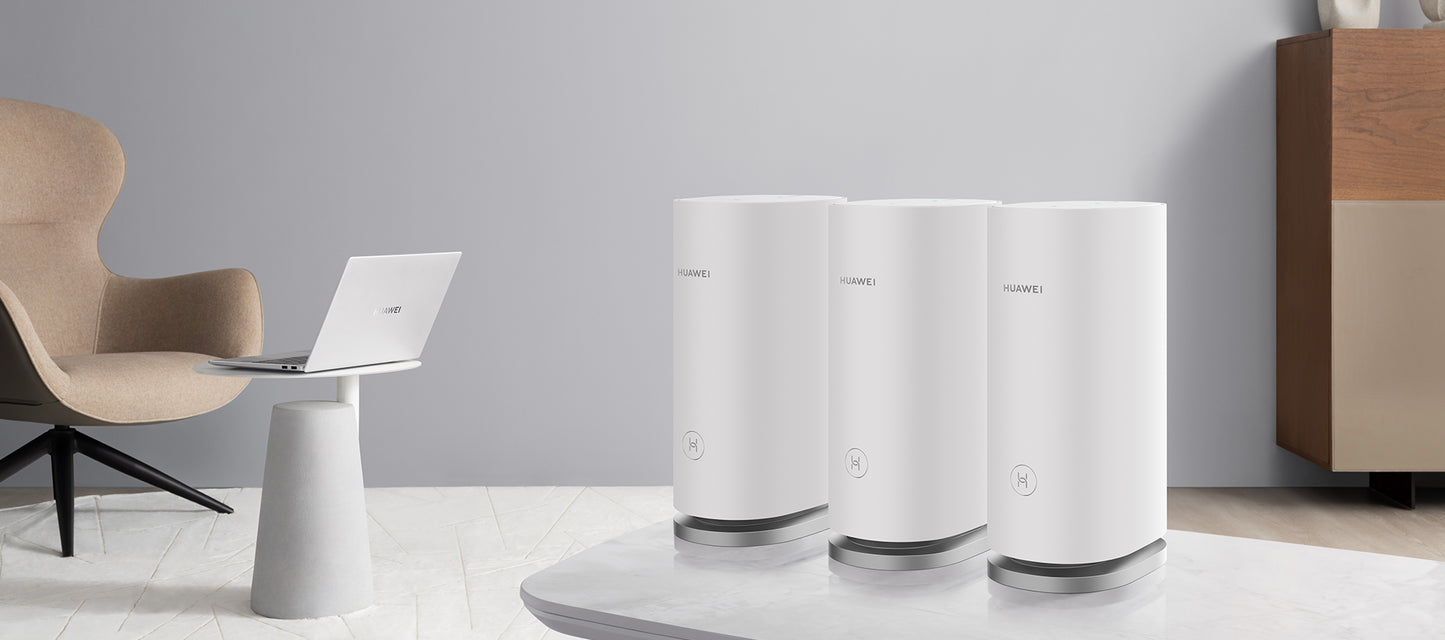

Huawei Wifi Mesh 3-Pack

IEEE 802.11b/g/n/ax

2 x 2 MIMO 2.4 GHz

IEEE 802.11a/n/ac/ax

2 x 2 MIMO 5 GHz

2.4 GHz: 574 Mbps (theoretical)

5 GHz: 2402 Mbps (theoretical)

Total theoretical negotiated rate: 2976 Mbps

2.4 GHz & 5 GHz (supports prioritize 5 GHz)

Internal antennas

256 MB RAM + 128 MB ROM

*Due to limitations in CPU processing power, memory used by the operating system and pre-installed applications, the actual space available to users may be less than the stated memory capacity. Actual memory space may change due to application updates, user operations, and other related factors.

The drop network cable can be inserted into any one of the three 10/100/1000 Mbps auto-negotiation Ethernet ports to access the Internet.

Power port, Network port, Reset button (pinhole), and H button

Connect to HarmonyOS Connect devices or WPS wireless devices with a press of H button

Independent Reset pinhole

One "H" indicator (red/blue)

12V DC, 1A

< 12 W

100 – 240V

50 – 60 Hz

802.11kvr protocol, HarmonyOS Mesh+, PPPoE/DHCP/static IP address WAN connection methods, Wi-Fi timer, Guest Wi-Fi, Device speed limiting, Wi-Fi access control, Parental control, VPN pass through, DMZ/virtual server

Supports HUAWEI HomeSec™

WiFi brute force attack prevention, unauthorized network access prevention, WPA3

Supported

0°C to 40°C (32°F–104°F)

–40℃ to +70℃ (–40℉ to +158℉)

5% to 95% (non-condensing)

HUAWEI WiFi Mesh 3: 1  (standard configuration)

Power Adapter: 1  (standard configuration)

Quick Start Guide: 1  (standard configuration)

Warranty Card:1 (standard configuration)

Ethernet Cable: 1 (standard configuration)
